Vorteile unserer schmalen Passscheiben:
- geringe Ringbreite
- Werkstoff Messing, Stahl A2 (rostfrei) – keine Korrosionsprobleme
- Feinabstufung in 0,05mm-Schritten möglich
- Kostenreduzierung gegenüber dem Einsatz von Sonderanfertigungen nach Zeichnung

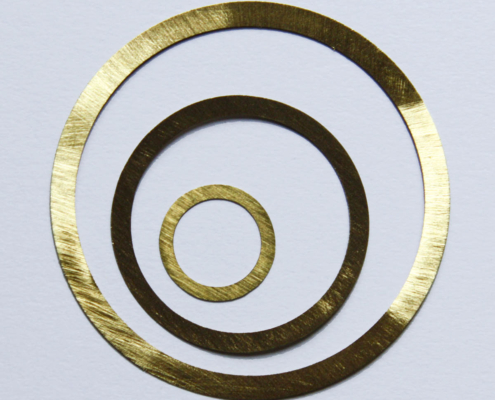

Lieferprogramm Messing
Schmale Passscheibenreihe in Messing
CuZn37 halbhart / hart / federhart
d: Innendurchmesser / D: Außendurchmesser / t: Scheibendicke
S = Lieferung sofort, 2W = Lieferung in 2 Wochen
*auch in t = 1,0 lagerhaltig
d | x | D | Artikelnr. | t = 0,10 | t = 0,25 | t = 0,40 |
---|---|---|---|---|---|---|
8 | x | 11 | DS008011 | S | S | S |
9 | x | 13 | DS009013 | S | S | S* |
10 | x | 14 | DS010014 | S | S | S* |
12 | x | 16 | DS012016 | S | S | S |
14 | x | 17 | DS014017 | S | S | S |
15 | x | 19 | DS015019 | S | S | S |
17 | x | 21 | DS017021 | S | S | S |
20 | x | 24 | DS020024 | S | S | S |
22 | x | 26 | DS022026 | S | S | S |
25 | x | 30 | DS025030 | S | S | S |
26 | x | 32 | DS026032 | S | S | S |
30 | x | 35 | DS030035 | S | S | S |
32 | x | 37 | DS032037 | S | S | S |
35 | x | 40 | DS035040 | S | S | S |
37 | x | 42 | DS037042 | S | S | S |
38 | x | 44 | DS038044 | S | S | S |
40 | x | 45 | DS040045 | S | S | S |
42 | x | 47 | DS042047 | S | S | S |
45 | x | 50 | DS045050 | S | S | S |
47 | x | 52 | DS047052 | S | S | S |
50 | x | 55 | DS050055 | S | S | S |
52 | x | 58 | DS052058 | S | S | S |
52 | x | 60 | DS052060 | S | S | S |
55 | x | 62 | DS055062 | S | S | S |
58 | x | 65 | DS058065 | S | S | S |
60 | x | 68 | DS060068 | S | S | S |
62 | x | 70 | DS062070 | S | S | S |
65 | x | 72 | DS065072 | S | S | S |
68 | x | 75 | DS068075 | S | S | S |
70 | x | 78 | DS070078 | S | S | S |
72 | x | 80 | DS072080 | S | S | S |
75 | x | 82 | DS075082 | S | S | S |
78 | x | 85 | DS078085 | S | S | S |
80 | x | 88 | DS080088 | S | S | S |
82 | x | 90 | DS082090 | S | S | S |
85 | x | 95 | DS085095 | S | S | S |
88 | x | 95 | DS088095 | S | S | S |
90 | x | 100 | DS090100 | S | S | S |
95 | x | 105 | DS095105 | S | S | S |
100 | x | 110 | DS100110 | S | S | S |
105 | x | 115 | DS105115 | S | S | S |
110 | x | 120 | DS110120 | S | S | S |
115 | x | 125 | DS115125 | S | S | S |
120 | x | 130 | DS120130 | S | S | S |
125 | x | 135 | DS125135 | S | S | S |
125 | x | 140 | DS125140 | S | S | S |
130 | x | 145 | DS130145 | S | S | S |
135 | x | 150 | DS135150 | S | S | S |
140 | x | 155 | DS140155 | 2W | 2W | 2W |
145 | x | 160 | DS145160 | 2W | S | 2W |
150 | x | 165 | DS150165 | 2W | 2W | 2W |
155 | x | 170 | DS155170 | 2W | S | S |
160 | x | 175 | DS160175 | 2W | 2W | 2W |
165 | x | 180 | DS165180 | S | S | 2W |
170 | x | 185 | DS170185 | 2W | 2W | 2W |
170 | x | 190 | DS170190 | 2W | 2W | 2W |
175 | x | 190 | DS175190 | S | S | 2W |
180 | x | 195 | DS180195 | 2W | 2W | 2W |
180 | x | 200 | DS180200 | S | 2W | 2W |
190 | x | 210 | DS190210 | 2W | 2W | 2W |
195 | x | 210 | DS195210 | 2W | 2W | 2W |
195 | x | 215 | DS195215 | 2W | 2W | 2W |
200 | x | 220 | DS200220 | 2W | 2W | 2W |
205 | x | 220 | DS205220 | 2W | 2W | 2W |
205 | x | 225 | DS205225 | 2W | 2W | 2W |
210 | x | 230 | DS210230 | 2W | 2W | 2W |
220 | x | 240 | DS220240 | S | 2W | 2W |
225 | x | 250 | DS225250 | S | 2W | 2W |

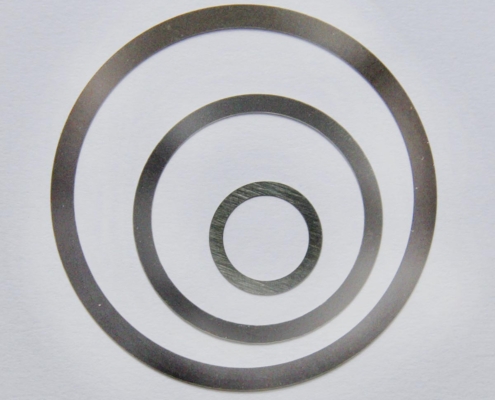

Lieferprogramm Stahl A2
Schmale Passscheibenreihe in rostfreiem Stahl
1.4310 / 1.4301
d: Innendurchmesser / D: Außendurchmesser / t: Scheibendicke
S = Lieferung sofort, 2W = Lieferung in 2 Wochen
d | x | D | Artikelnr. | t = 0,10 | t = 0,25 | t = 0,40 | t = 1,00 |
---|---|---|---|---|---|---|---|
8 | x | 11 | DS008011 | S | S | S | S |
9 | x | 13 | DS009013 | S | S | S | S |
10 | x | 14 | DS010014 | S | S | S | S |
12 | x | 16 | DS012016 | S | S | S | S |
14 | x | 17 | DS014017 | S | S | S | S |
15 | x | 19 | DS015019 | S | S | S | S |
17 | x | 21 | DS017021 | S | S | S | S |
20 | x | 24 | DS020024 | S | S | S | S |
22 | x | 26 | DS022026 | S | S | S | S |
25 | x | 30 | DS025030 | S | S | S | S |
26 | x | 32 | DS026032 | S | S | S | S |
30 | x | 35 | DS030035 | S | S | S | S |
32 | x | 37 | DS032037 | S | S | S | S |
35 | x | 40 | DS035040 | S | S | S | S |
37 | x | 42 | DS037042 | S | S | S | S |
38 | x | 44 | DS038044 | S | S | S | S |
40 | x | 45 | DS040045 | S | S | S | S |
42 | x | 47 | DS042047 | S | S | S | S |
45 | x | 50 | DS045050 | S | S | S | S |
47 | x | 52 | DS047052 | S | S | S | S |
50 | x | 55 | DS050055 | S | S | S | S |
52 | x | 58 | DS052058 | S | S | S | S |
52 | x | 60 | DS052060 | S | S | S | S |
55 | x | 62 | DS055062 | S | S | S | S |
58 | x | 65 | DS058065 | S | S | S | S |
60 | x | 68 | DS060068 | S | S | S | S |
62 | x | 70 | DS062070 | S | S | S | S |
65 | x | 72 | DS065072 | S | S | S | S |
68 | x | 75 | DS068075 | S | S | S | S |
70 | x | 78 | DS070078 | S | S | S | S |
72 | x | 80 | DS072080 | S | S | S | S |
75 | x | 82 | DS075082 | S | S | S | S |
78 | x | 85 | DS078085 | S | S | S | S |
80 | x | 88 | DS080088 | S | S | S | S |
82 | x | 90 | DS082090 | S | S | S | S |
85 | x | 95 | DS085095 | S | S | S | S |
88 | x | 95 | DS088095 | S | S | S | S |
90 | x | 100 | DS090100 | S | S | S | S |
95 | x | 105 | DS095105 | S | S | S | S |
100 | x | 110 | DS100110 | S | S | S | S |
105 | x | 115 | DS105115 | S | S | S | S |
110 | x | 120 | DS110120 | S | S | S | S |
115 | x | 125 | DS115125 | S | S | S | S |
120 | x | 130 | DS120130 | S | S | S | S |
125 | x | 135 | DS125135 | S | S | S | S |
125 | x | 140 | DS125140 | S | S | S | S |
130 | x | 145 | DS130145 | S | S | S | S |
135 | x | 150 | DS135150 | S | S | S | S |
140 | x | 155 | DS140155 | S | S | S | S |
145 | x | 160 | DS145160 | S | S | 2W | 2W |
150 | x | 165 | DS150165 | 2W | 2W | 2W | 2W |
155 | x | 170 | DS155170 | 2W | S | S | 2W |
160 | x | 175 | DS160175 | 2W | 2W | 2W | 2W |
165 | x | 180 | DS165180 | 2W | 2W | 2W | 2W |
170 | x | 185 | DS170185 | 2W | 2W | 2W | 2W |
170 | x | 190 | DS170190 | 2W | 2W | 2W | 2W |
175 | x | 190 | DS175190 | 2W | 2W | 2W | 2W |
180 | x | 195 | DS180195 | 2W | 2W | 2W | 2W |
180 | x | 200 | DS180200 | 2W | 2W | S | 2W |
190 | x | 210 | DS190210 | 2W | 2W | 2W | S |
195 | x | 210 | DS195210 | 2W | 2W | 2W | 2W |
195 | x | 215 | DS195215 | 2W | 2W | 2W | 2W |
200 | x | 220 | DS200220 | 2W | 2W | 2W | 2W |
205 | x | 220 | DS205220 | 2W | 2W | 2W | 2W |
205 | x | 225 | DS205225 | 2W | 2W | 2W | 2W |
210 | x | 230 | DS210230 | 2W | 2W | 2W | 2W |
220 | x | 240 | DS220240 | 2W | 2W | 2W | 2W |
225 | x | 250 | DS225250 | 2W | 2W | 2W | 2W |
